Bluetooth Module for Arduino with Long Range Connectivity

Upgrade your Arduino projects with long range Bluetooth connectivity with this module

Product Price

€7.10

Product Review Score

4.45 out of 5 stars

201 reviews

Product Summary

Upgrade your Arduino projects with this Bluetooth module featuring long-range connectivity for seamless communication. Take your DIY electronics to the next level with reliable and high-performance wireless capabilities.

Order now at the lowest possible price

Loading...

When you order through these links, we may earn a commission at no additional cost to you.

Additional Product Details

  • Feature:

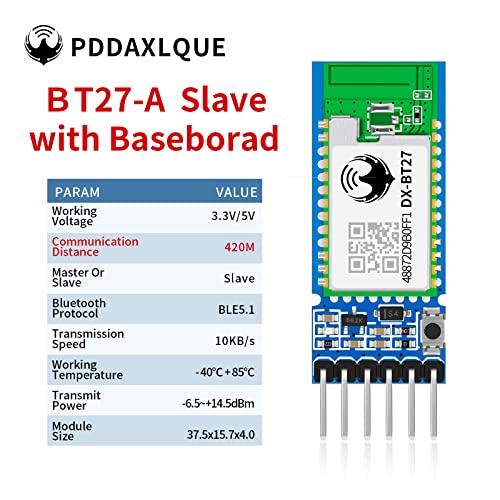

  • Bluetooth Module Name: DX-BT27-A(slave model)
  • Bluetooth BLE 5.1 Protocol

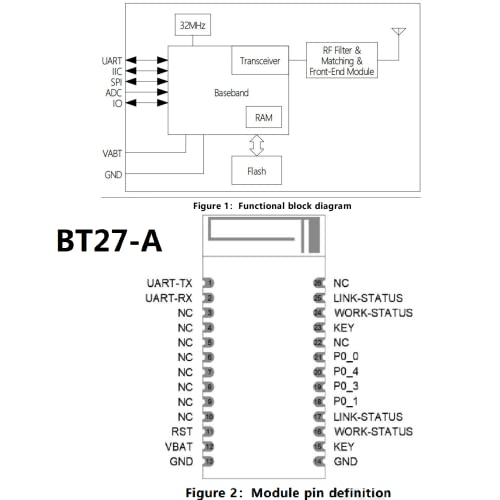

  • DIALOG 14531 Main Control Chip+PA Amplifier
  • Transmission Rate 10K Bytes/s
  • Operating Temperature - 40 +85 ℃
  • Supports UART Hardware Interfaces

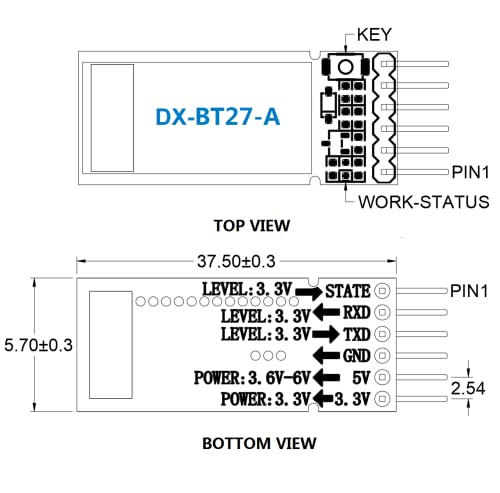

  • Module Size 37.5(L) x 15.7(W) x 4.0(H) mm
  • This slave module is suitable for communicating with connected devices through mobile phones, and compatible with Android/iOS(iPhone)
  • Multiple Connection Methods:
  • Can search connection manually
  • With MAC address code, it can scan QR code for connection
  • Compatible with Android/iOS(iPhone)
  • Working Voltage: 3.3V to 5V
  • Supported Baud Rate: 2400,4800,9600,19200,38400,57600,115200

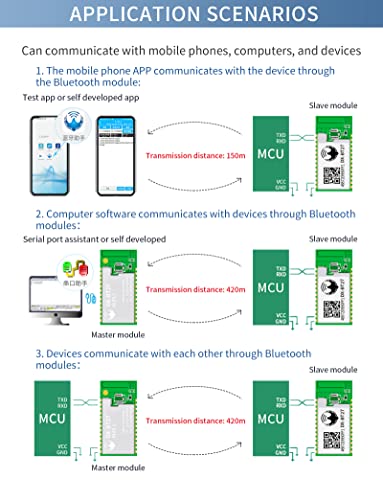

  • Long Range: The connection distance between the BT27-A slave and the mobile phone can reach 140 meters, and the connection distance between the BT27-A master and the BT27-A slave can reach 400 meters
  • Notice: Because this module is BLE 5.1 serial port protocol module, so the PC side cannot use the built-in Bluetooth or Bluetooth adapter for communication. If you need to communicate with slave module by computer, it requires the master module to connect to the computer and use the computer serial port assistant to communicate. For the specific process, please refer to "Use the master Bluetooth to communicate with the module" and "DX-BT24 series Bluetooth module_Main mode_ Application Guidelines". You can find out them on our official website

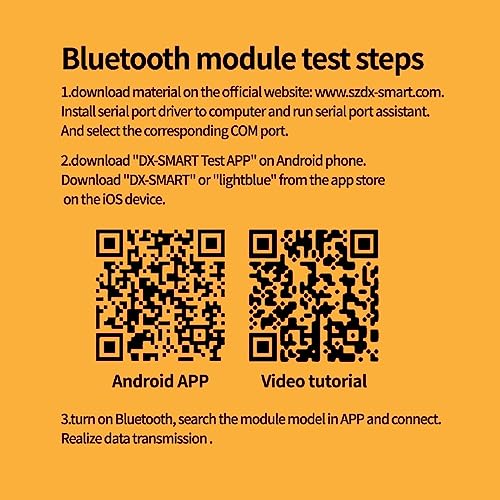

  • Technical Support: Out of the box, plug and play. You can find out testing softwares, user's manuals, development documents, and all resources related to this Bluetooth module on our official website. If you encounter any issues, please contact us by Amazon email, and we will resolve your issues within 24 hours

Our Policies

Secure Checkout
Guaranteed safe & secure
Easy Returns
Fast & easy product returns

Upgrade your Arduino projects with our long-range Bluetooth module. This module allows you to connect your Arduino board wirelessly to other devices over extended distances, making it perfect for projects that require communication over a long range.

With easy-to-use compatibility with Arduino boards, this Bluetooth module is simple to integrate into your DIY electronics projects. Whether you're creating a remote control robot, a smart home automation system, or a weather monitoring station, the long-range connectivity of this module will ensure seamless communication between your Arduino and other devices.
